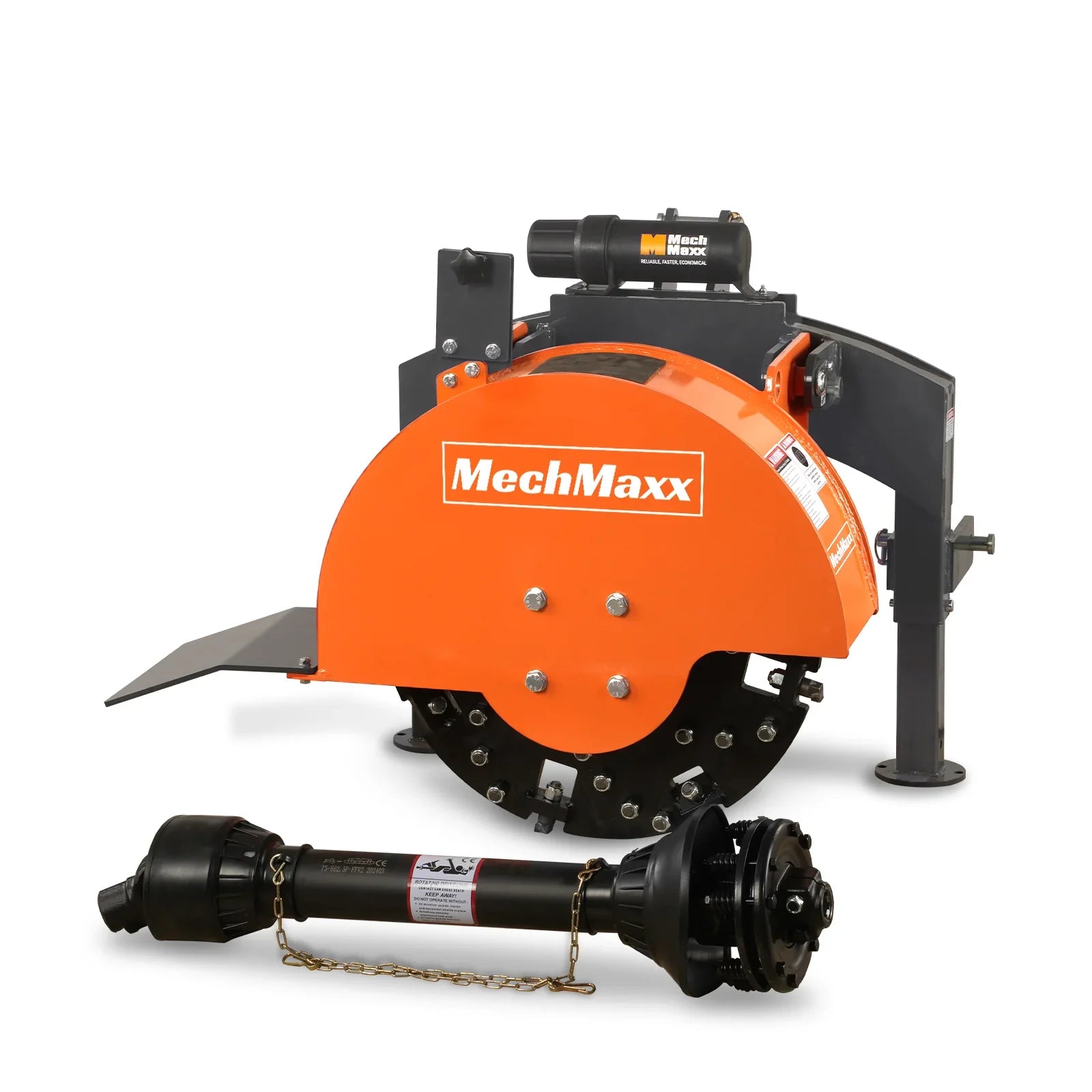

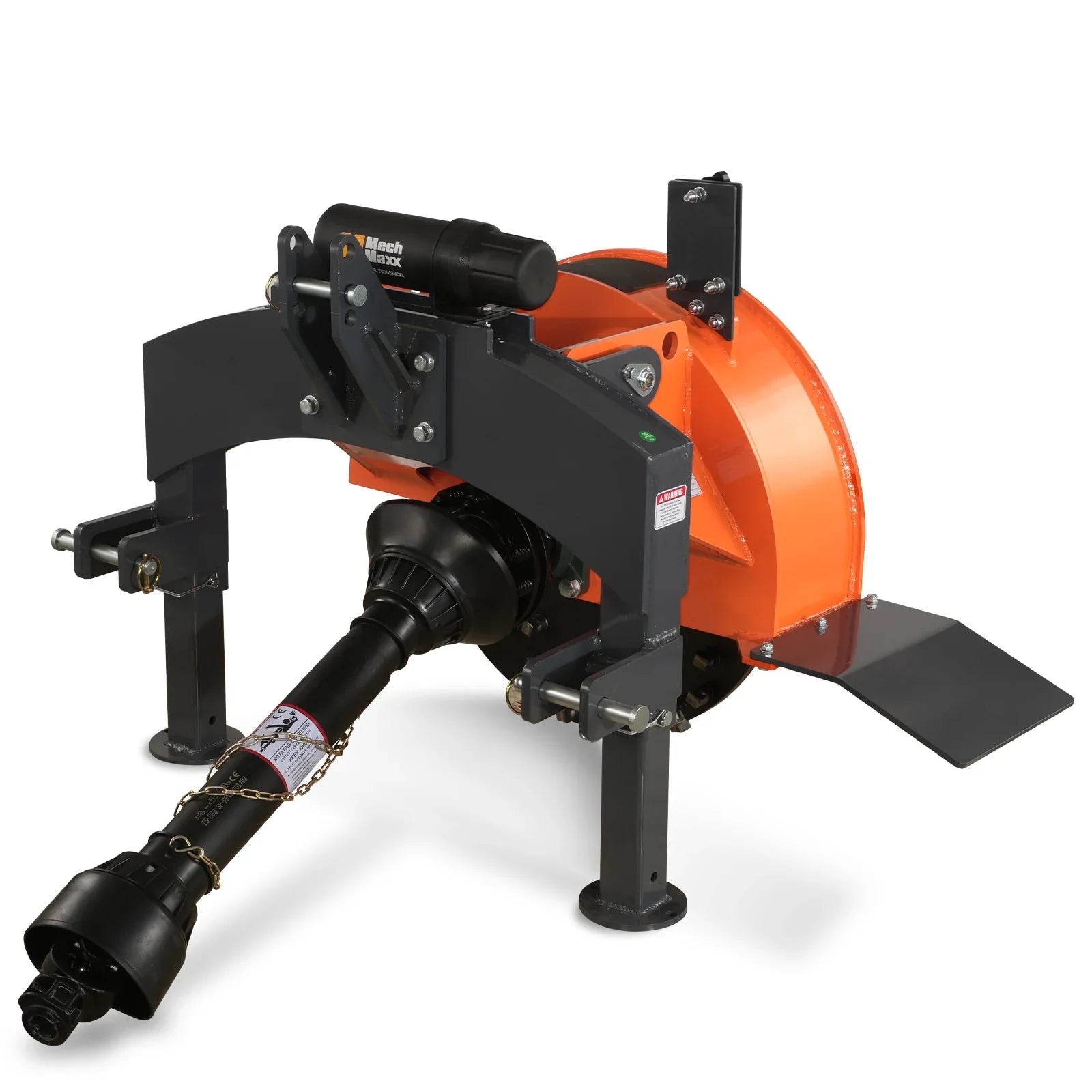

PTO Stump Grinder
| Flywheel Diameter | 24 in | Mounting | 3 point hitch Cat. 1 (Quick attach compatible) |
| Flywheel Thickness | 3/4 in | PTO Input | 540 RPM |

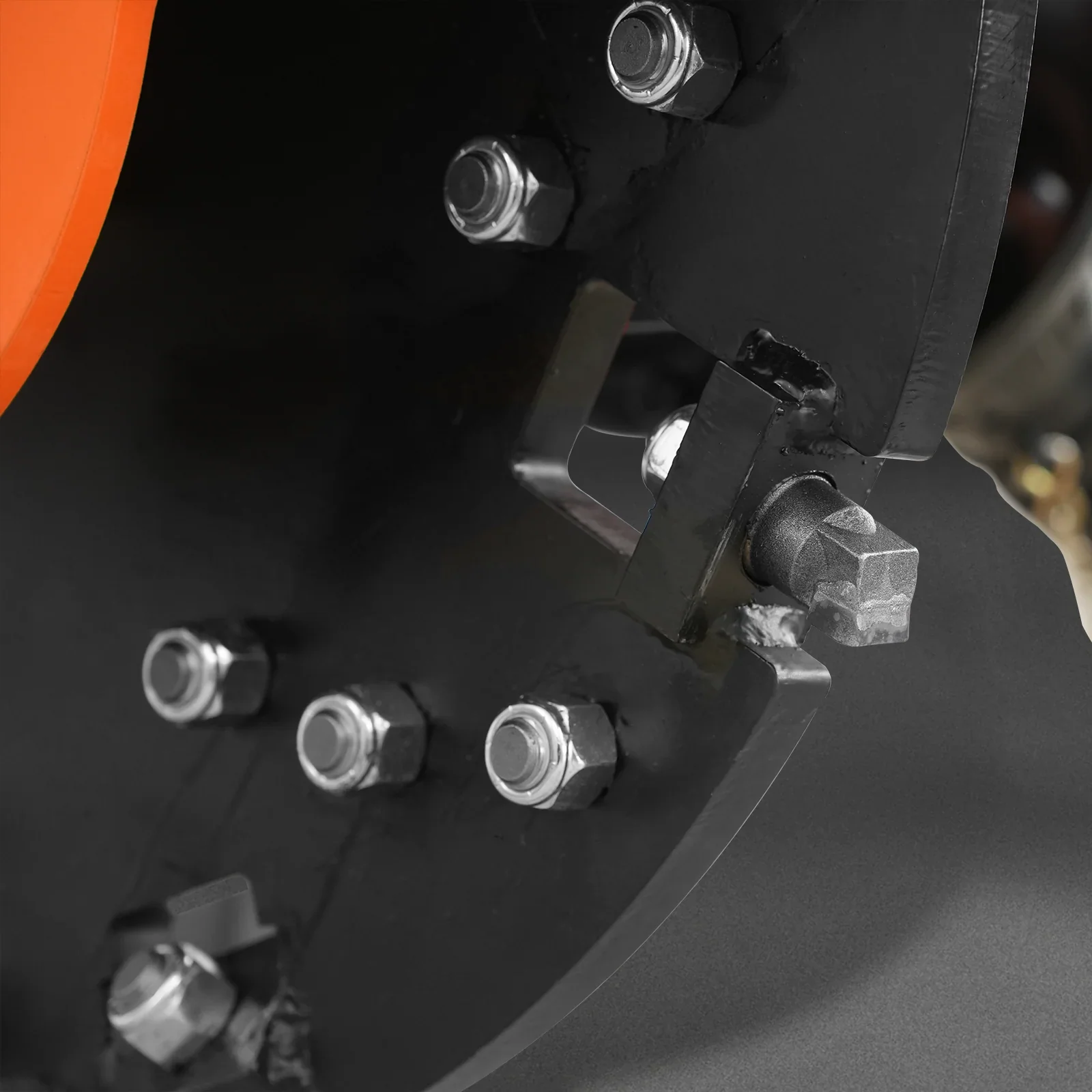

| Carbid Tip | 34 pcs | Max. Torque | 1200Nm |
| Carbid Tip Material | YG11C | PTO Shaft Weight | 44 lbs |
| Tip Holder Material | 42CrMo | Dimensions | 29 x 37x 38 in |
| PTO HP Required | 15–45 HP | Packing | Iron frame + Carton |
| PTO Shaft (Included Shipping) | 1-3/8” 6 Spline Tractor and Implement Ends PTO Driveline Shaft with Slip Clutch | Weight (N.W/G.W.) | 450/563 lbs |
| Friction Torque Limiter (Slip Clutch) | Included |
PTO Wood Chipper
| Tractor Power | 18-45HP | Blade (Tines) Material | 4CrW2Si |
| Max. Throughput Capacity | 4 in | PTO Shaft RPM | 540 RPM |
| Infeed Opening | 4*10 in | Flywheel Speed | 540 RPM |
| lnfeed Chute Opening | 20*20 in | Drive Type | PTO |
| Feeding Opening | Gravity Feed | Driveline Shaft Length | T5-LF-31 in with shear bolt, 31.5-43 in |
| Discharge Chute Rotation | 360 Degrees | 3-Point Hitch | CAT 1 |
| Rotor Diameter | 25 in | Dimensions (L x Wx H) | 38x 33x 43 in |
| Rotor Thickness | 0.5 in | Finsh | Powder Coat Paint Galvanized Steel |
| Rotor Weight | 82 lbs | Warranty | 1 year |
| Number Of Blades | 4+1 | Net Weight | 397 lbs |
| Blade Weight | 0.9 lbs | Gross Weight | 441 lbs |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
